PARAMETRY + FUNKCE

• Počet kanálů 2

• Výkon :

• 300W per channel @ 8 ohm (1000W bridged)

• 500W per channel @ 4 ohm (2000W bridged)

• 700W per channel @ 2 ohm

• 500W per channel @ 100V (230VAC only)

• 500W per channel @ 70V

• Příkon: 230W typ. 1100W max

• Citlivost: 1.4Vrms, max. výkon

• Impedance vstupů

  • Asymetrický analogový vstup- RCA jack: 10kΩ
  • Symetrický analogový vstup: 20kΩ

• Odstup signál /šum 101dB A-weighted @ 1.4Vrms & 4Vrms input max

• THD zkreslení - menší než 1%

• Frekvenční odezva ± 2dB at 1/8th power (20Hz to 20kHz)

• Síťové připojení: RJ-45, 10/100Mbps

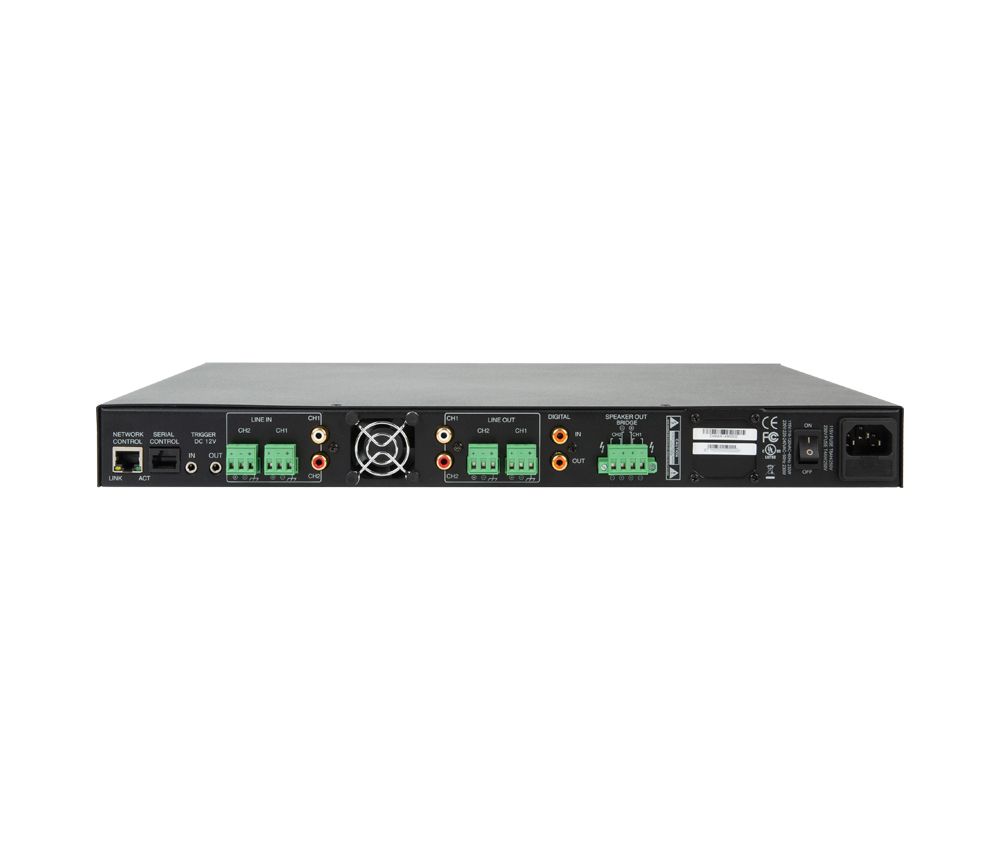

• Audio vstupy/výstupy

  • Symetrický Analog Audio: 2x 3-pólový Phoenix-style násuvné šroubové svorky
  • Asymetrický analog RCA jack: Bílý (L kanál), Červený (R kanál)

• Výstup pro reproduktory : 2x 3-pólový Phoenix-style násuvné šroubové svorky (12-18 AWG)

• Trigger vstup + výstup 3.5mm mono jack

• Rozměry 43 cm x 4,5 cm x 30,5 cm

• Výška v rozvaděči 1U

• Hmotnost 6 kg

Cloud Control Claim this amp in our exclusive cloud management platform, OvrC. Using OvrC, you can access the amp remotely to make configuration changes in the UI and easily update the firmware, which will send you alerts if there are any issues at the customer site.

Adjustable Inputs & Outputs Balanced and unbalanced analog inputs plus digital inputs allow you to use this amp without a CLEANBox Pro. The adjustable input gain settings let you input a wide range of source levels, including mic level, line level, and pro audio - simply adjust the input level in the UI to match the source. Plus, with loop outs, you always have the option to stack these amps to gain more power and easily loop the wiring.

Control System Integration Designed for the custom integrator, this amp is unique in that it easily integrates with control systems. Equipped with options for serial, IP, IR, and OvrC cloud control options, this amp is not only a breeze to automate, it’s also easily configured during your install. And with a full set of pre-built drivers, it’s just a matter of dropping in a file to integrate the amp with the control system of your choice.

Compact 1U Design Get tons of features in an ultra-compact form factor. Our sleek 1U design takes up little of your valuable rack space, and included rack ears make the amp easy to install.

Pre-loaded DSP Settings To ensure this amp works perfectly with our landscape speaker systems, we've pre-loaded a host of DSP settings. Plus, the new UI and front panel allows for easy recall, so that new system will sound amazing in a matter of minutes.

Versatile Configurations This professional amplifier delivers premium performance for even the largest speaker systems. Install high-powered versatility, with two configurable output channels to support 70V, 8-ohm, and hybrid configurations (2-ohm minimum).

Build Quality We knew that to compete in the high-powered pro audio space, we had to build this amp with premium quality from the ground up. Our amp has been through extensive testing in high stress environments to ensure its up to the task. See our quality video here.

Bring the Bass The 2-channel configuration of this amp allows for simultaneously powering a large number of 70V speakers and high-powered subs, like our Episode® Landscape Series Burial Subwoofersand Episode® Landscape Series Hardscape Subwoofers. Our detailed install instructions make integrating an amp with our subwoofers easy, giving you increased performance and earth-shattering low notes with zero hassle.
