DESCRIPTION

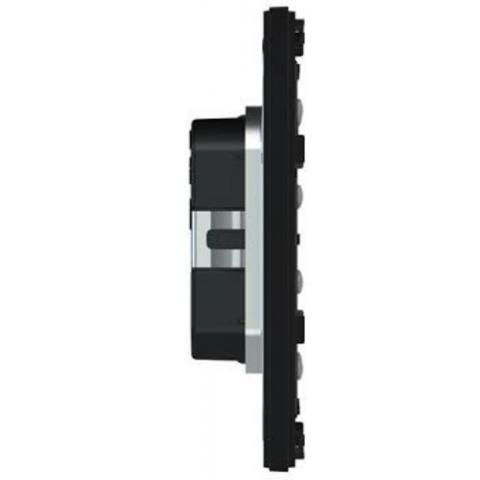

The Ekinex® 20venti series 8-fold pushbutton is used for on/off control of utility devices, dimming of luminaires, control of motorized drives for roller shutters or other programmable control functions. Thanks to the integrated temperature sensor, the button can act as a temperature controller for a room or zone. The proximity sensor allows the activation of the backlight and other functions. One RGB LED for each button. The switch has an integrated KNX bus communication module and is designed for installation in a flush-mounted wall box.

Delivery includes a terminal block for connection to the bus, a metal support for installation onto round or square mounting box (fixing holes 60 mm apart), a plastic adapter and two pairs of fixing screws.

The following accessories are available to be ordered separately:

• 4 or 8 rectangular 30 x 15 mm plastic keys with or without backlit inscription
• square plate of the Deep and Surface series with 30 x 60 mm or 60 x 60 mm window

FUNCTIONS / CHARACTERISTICS

• 8 fold version (possibility to configure up to 4 or 8 independent functions)
• RGB LED for each freely programmable button
• Integrated temperature sensor
• Integrated proximity sensor for backlit and customizable rockers (on request for single LED)
• Room thermostat function
• Plastic casing
• Connection to bus line with KNX terminal block
• Wall-mounting installation on round or square wall box
• IP20 protection degree (installed)
• 30 Vdc power supply by KNX bus
