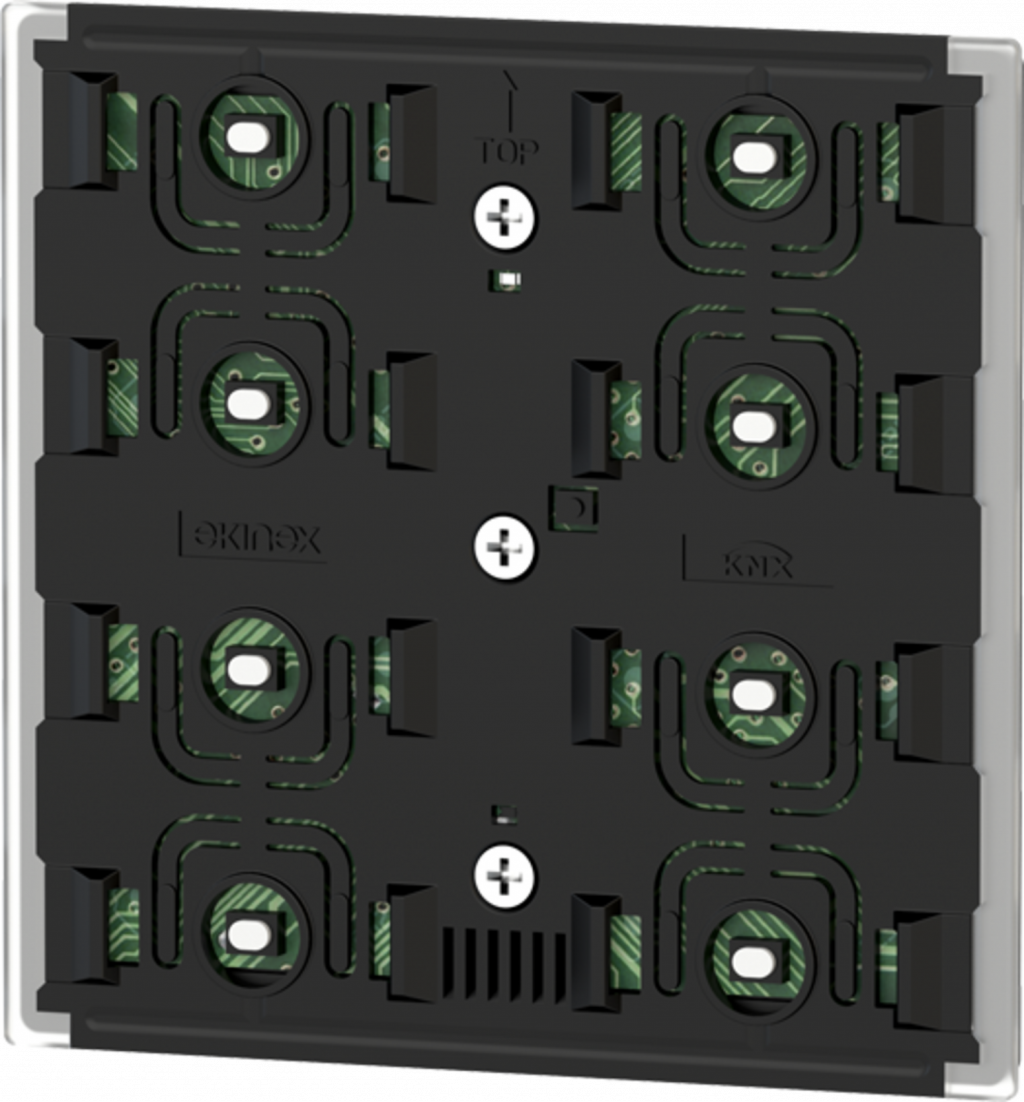

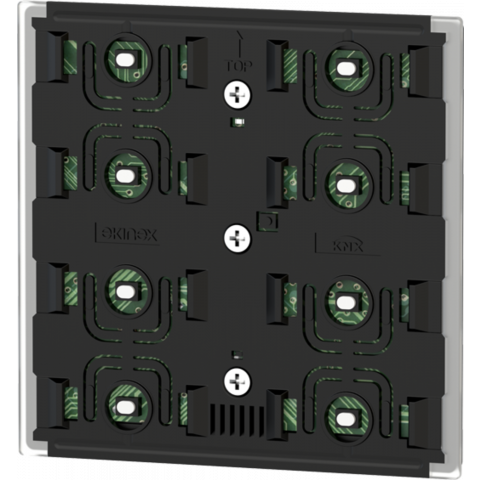

4-fold KNX pushbutton (max. 8 independent functions). Mounting on round or square wall box. Power supply via bus. To be used in KNX installations for home and building automation. Bus terminal block, fixing screws and mounting support included in the delivery. The device has to be to completed alternatively with:

• set of two rectangular 40 x 80 mm rockers (EK-TRV-...);
• set of four square 40 x 40 mm rockers (EK-TQQ-...);
• set of four rectangular 80 x 20 mm rockers (EK-TRO-...).

The rockers have to be ordered separately; the basic code must be completed with the extension for the colour and the material.

Versions to be completed with a square frame of the series form or flank: EK-E32-TP

'NF (No Frame) versions for mounting without frame: EK-E32-TP-NF (black side profile) EK-E32-TP-NFW (white side profile)

FUNCTIONS / CHARACTERISTICS

• on/off switching of single loads or groups of loads
• dimming of lighting devices
• control of motor drives (for roller shutters, blinds, curtains, etc.)
• logic functions
• sending on the bus of values
• recalling and saving of scenes
• switching to forced functioning (lock)
