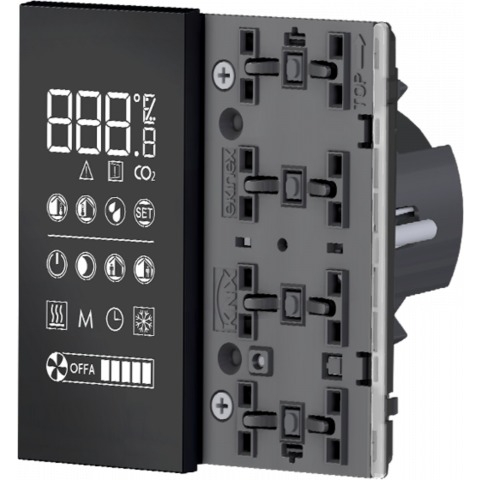

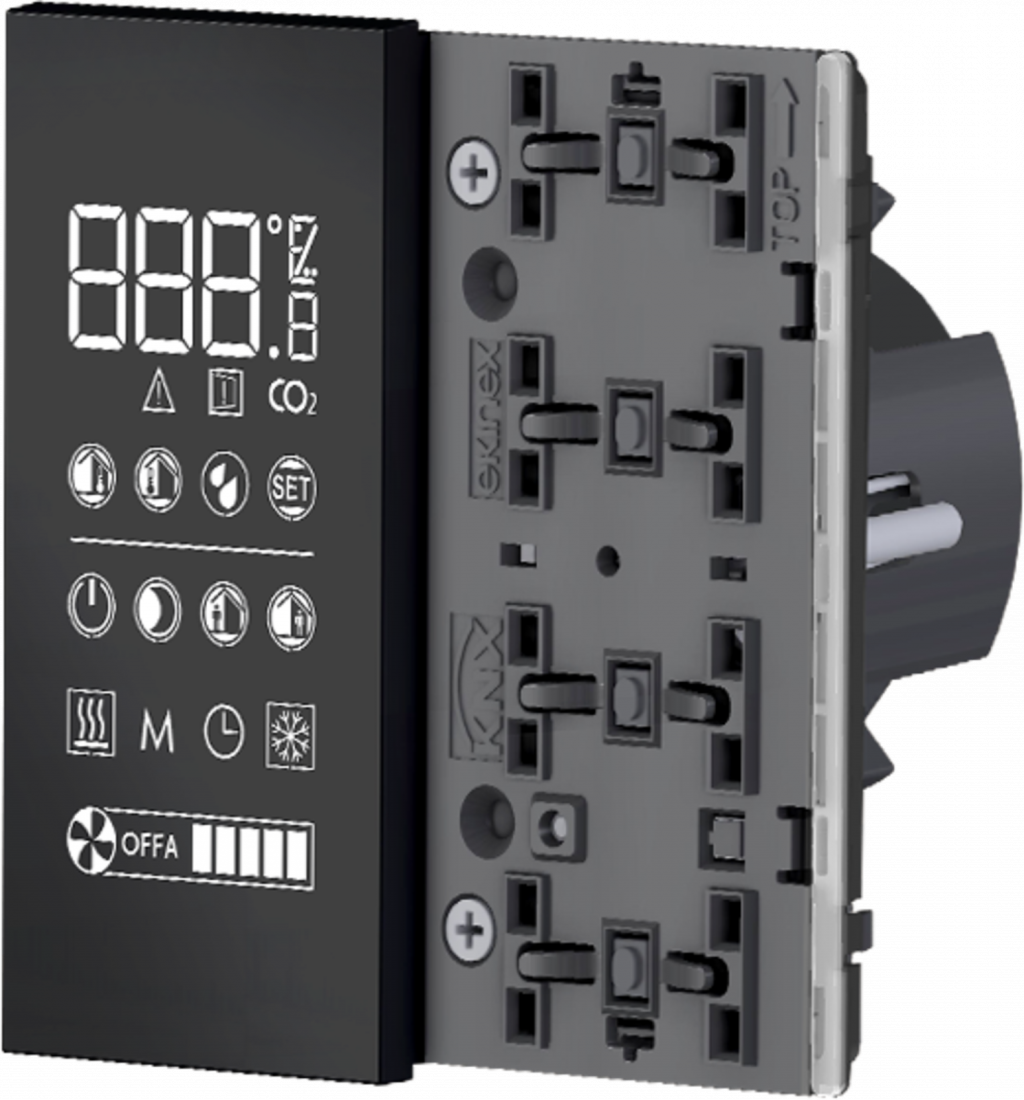

KNX room temperature controller. To be used in KNX installations for home and building automation. Measuring of temperature through integrated sensor. Two configurable inputs. User interface with backlighted LCD and two rockers. Mounting on round or square wall box. Powered by the bus line. Terminal block for bus, screws and mounting support included in the delivery. The device has to be to completed with a set of two square rockers for room temperature controller (to be ordered separately).

Versions to be completed with a square frame of the series form or flank: EK-EP2-TP (leds colours: blue / green) EK-EP2-TP-RW (leds colours: red / white)

'NF (No Frame) versions: EK-EP2-TP-BG-NF (leds colours: blue / green) EK-EP2-TP-RW-NF (leds colours: red / white)

'NF (No Frame) versions with housing in white plastic: EK-EP2-TP-BG-NFW (leds colours: blue / green) EK-EP2-TP-RW-NFW (leds colours: red / white)

FUNCTIONS / CHARACTERISTICS

• Measurement of temperature with integrated sensor with the possibility of sending the value ​​on the bus
• 2 points (ON / OFF) or proportional (PWM or continuous) room temperature regulation
• Heating and cooling modes with the possibility of switching locally or via bus
• Operating modes: comfort, standby, economy and building protection with separate setpoints for heating and cooling
• Automatic or manual control of fan-coil units with 2 or 4 pipes hydraulic distribution
• Automatic switching of the operating mode depending on presence or opening windows
• Weighted average of the two temperature values
• Display of temperature (measured, setpoint, external in °C or °F), alarms and errors (with alphanumeric coding)
• Surface temperature limiting (for radiant floor heating systems)
• Delayed start of ventilators for fan-coil units ("hot-start" function), time-scheduled or depending on the temperature of the fluid at the exchange battery
• Reporting the opening of windows
• Two inputs configurable as digital or analog
