DESCRIPTION

KNX bus device for detection of temperature, relative humidity, TVOC (Total Volatile Organic Compounds) and CO2 equivalent concentration values of the air mass. Temperature regulator function for a room or zone, function of thresholds for relative humidity, TVOC and CO2 concentration regulator. Compatible with KNX actuators, for VAV flow regulators and 6-way zone valve management. Frontal LEDs for indication if the device is in heating, cooling, dehumidification, TVOC or CO2 threshold mode. Mounting on round or square wall box. Powered by the bus line. Terminal block for bus, screws and mounting support included in the delivery.

Versions to be completed with a square frame of the series form or flank: EK-ES2-TP

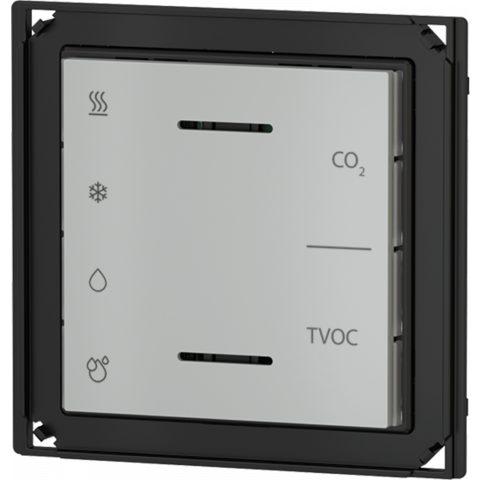

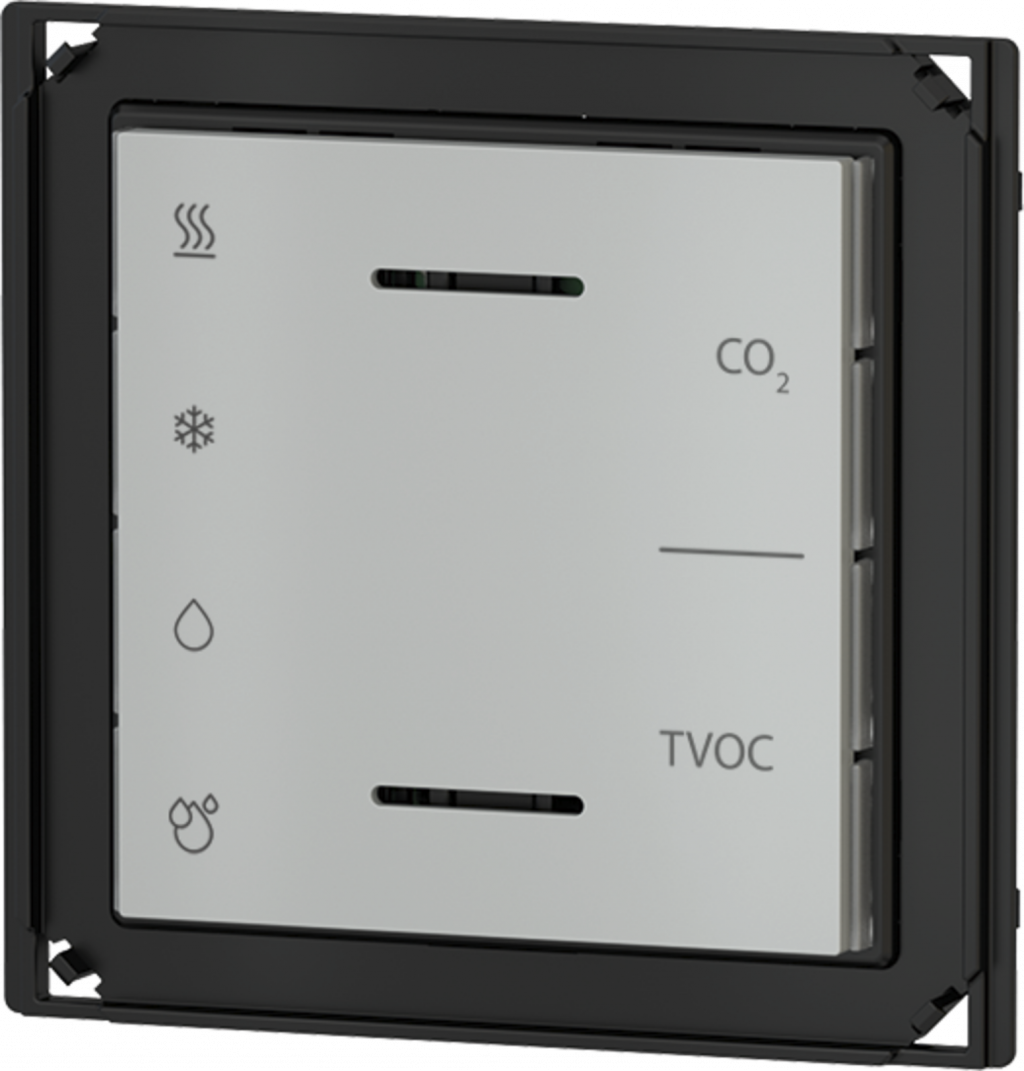

'NF (No Frame) versions: EK-ES2-TP-NF (black side profile) EK-ES2-TP-NFW (white side profile)

SINGLE INSTALLATION

The device has to be completed with a square plate EK-PQS-... (to be ordered separately).

DOUBLE INSTALLATION

The device may be also installed in combination with:

• a pushbutton of the 71 series and completed with a 2-fold plate EK-P2S-... and a 2-fold form or 2-fold flank frame;
• a flush-mounted insert with standard 55x55 mm modularity and completed with a 2-fold plate EK-P2G-... and a 2-fold form or 2-fold flank frame. Plate and frame have to be ordered separately.

FUNCTIONS / CHARACTERISTICS

• Integrated temperature and relative humidity sensors
• Integrated VOCs (Volatile Organic Compounds) sensor with output signal for CO2 equivalent
• Room thermostat function
• Threshold regulator function for relative humidity, TVOC and CO2 equivalent
• Compatibility with KNX actuators, for VAV flow regulators and 6-way zone valve management
• LEDs for heating, cooling, dehumidification, TVOC or CO2 equivalent threshold mode indication
