Vlastnosti

• Doporučený výkon zesilovače: 50–200 wattů
• Impedance: 4 Ohm
• Citlivost (db 1watt/1 metr): 90
• Frekvenční rozsah: 80 Hz–20 kHz +/- 3dB
• Typ výškového reproduktoru: Textilní kupole
• Průměr výškového reproduktoru: 1"
• Typ basového reproduktoru: Papír/směs vláken
• Průměr basového reproduktoru: 5,25"

Rozměry

• Výška: 482 mm
• Šířka: 273 mm
• Hloubka: 99 mm
• Rozměr montážního otvoru: 485 mm x 276 mm
• Rozměr bezokrajové mřížky: 310 mm x 520 mm
• Rozměr úzké mřížky: 291 mm x 500 mm
• Rozměr široké mřížky: 306 mm x 516 mm

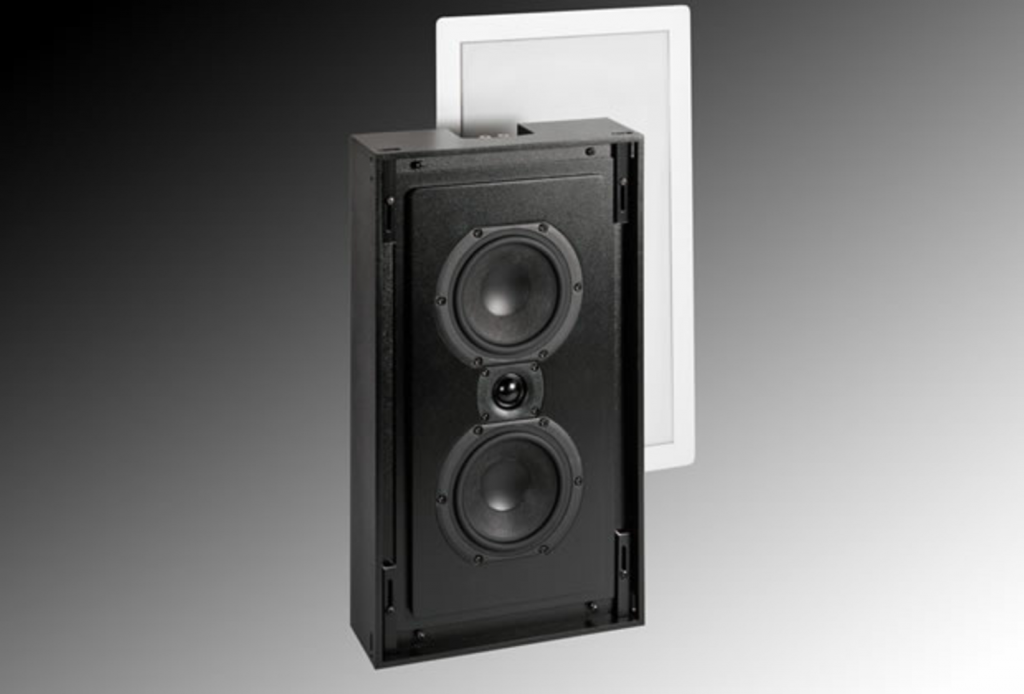

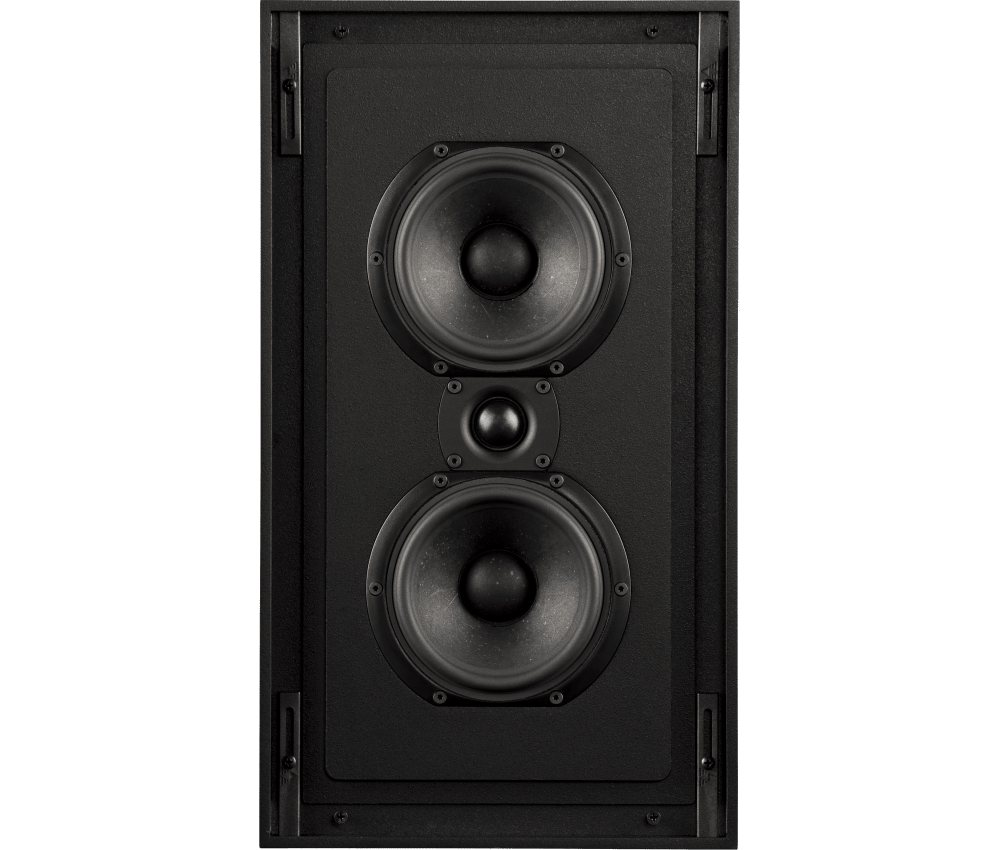

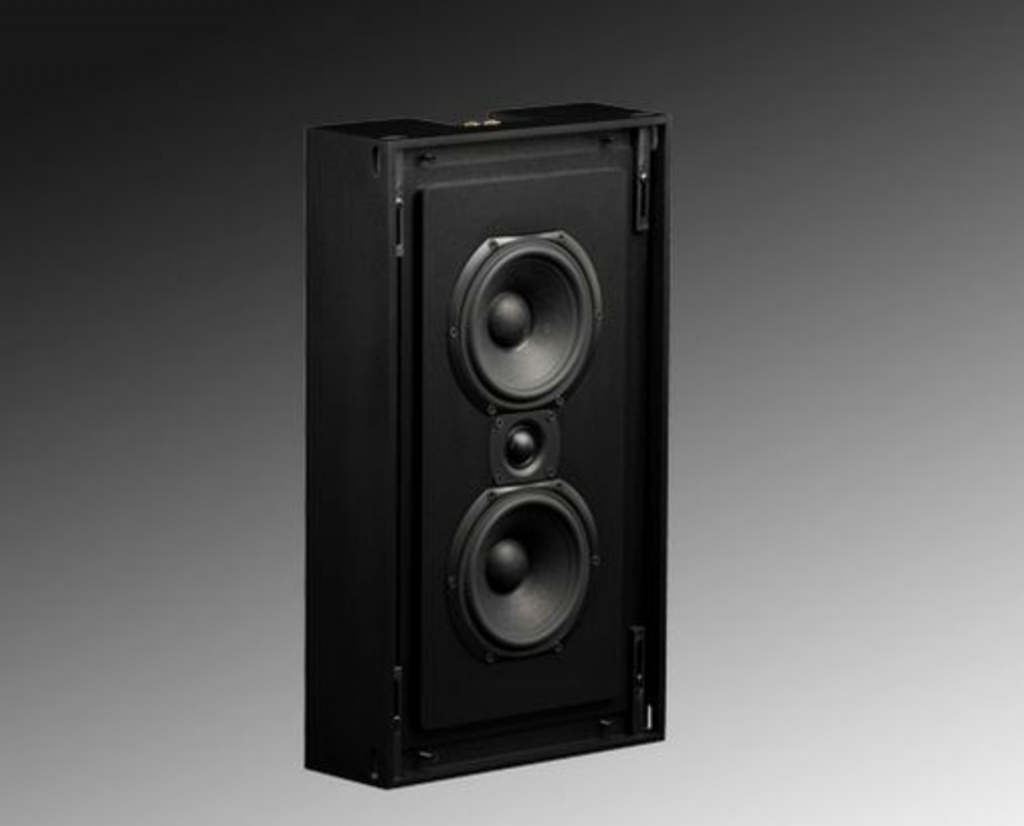

The strength of this exceptional loudspeaker is its absence of compromise. The OnWall Platinum LCR can resolve the subtlest musical detail with effortless accuracy, but when called upon, can reproduce the most powerful movie soundtrack at theatrical levels in virtually any size room, from a family room to a large screening theater.

Designed for easy mounting to the Triad Baffle Wall system, the OnWall Platinum LCR comes with isolation brackets mounted to the solid, sealed enclosure and at a compact 9″ depth, it's designed to fit behind cloth wall systems.

The cabinet is built extremely solid, and is acoustically inert. It contains revolutionary internal technologies that disperse speaker back waves before they can add distortion by reflecting back through the speaker cones. Expensive proprietary drivers from Scan-Speak and Seas were chosen for their accuracy, output, and reliability. Efficiency is high at 94.5 dB. We know of few other speakers that will play this loudly that sound this good. Where sound quality for both movies and music is crucial, Platinum is the only choice.

Features

• Designed to be used with Triad’s BaffleWall system
• Fits behind stretched, fabric wall systems
• High output design
• Designed for large theaters

Enclosure

• Fully engineered, Premium MDF enclosure
• Acoustic Suspension
• 3-way design

Finishes

• Triad’s Basic & Custom Finishes are available for this product. The standard finish for this product is Black paint. For any other colors, please refer to Triad’s Custom Match Finish program for this product. The paint we use is a top quality enamel and is applied with a light pebble finish.
• Since all computer monitors and their colors vary, the digital color you see here will be different from the actual product finish.
