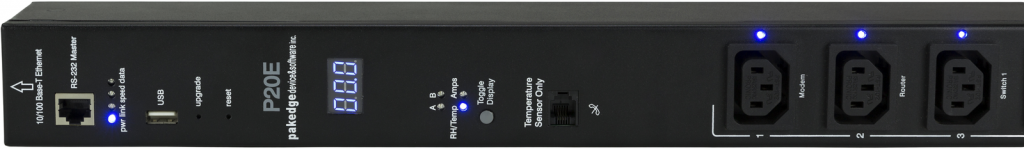

The P20/P20E is a complete power control solution for A/V and smart networks. It was designed with one function in mind – to keep your power managed devices operating when you want them to, and turned off when you want them to. This is accomplished through a suite of technologies and features that enable the PDU to be monitored, configured and operating autonomously through the local network, or remotely through the cloud. The Pakedge P20/P20E is a twenty outlet PDU with all twenty ports completely configurable and managed.

The outlets operate in two possible autonomous modes – self healing mode and timer mode. Self-healing mode automatically reboots frozen or non-responsive devices if it doesn’t respond to pings from the built in Auto Ping server. The PDU can be configured to allow the affected units to power up in a controlled sequence in order to ensure that certain units have completed their restart tasks, before the next unit powers up. Timer mode is used to turn devices turned on and off according to the user defined schedule.

The PDU can be configured to allow the affected units to power up in a controlled sequence in order to ensure that certain units have completed their restart tasks, before the next unit powers up. Timer mode is used to turn devices turned on and off according to the user defined schedule.

The PDU can be turned on and off on-demand through email commands to the PDU, Telnet through the console port and by web browser to the management menu. In addition to manual commands, the PDU can integrate with control and automation systems through the console port.

The P20/P20E is fully compatible with the Bakpak Cloud Management System – unlocking features such as complete remote power management, virtual power grouping, power scheduling, and more.

Ideal For:

• Up to 20 devices to be controlled and power managed
• Integration with Control Systems for power management
• Integration with networks with existing UPS systems

Features

• 20 power managed outlets
• 2 configurable autonomous power management modes – self healing and timer modes
• Email, web and telnet commandable
• Comprehensive browser based management menu
• Controllable by up to 8 separate users
• Cloud functions – virtualization, grouped power scheduling and port by port control (through the Bakpak Cloud Management System)
• Power protection ready approach – integrates with UPS with no protection loss
